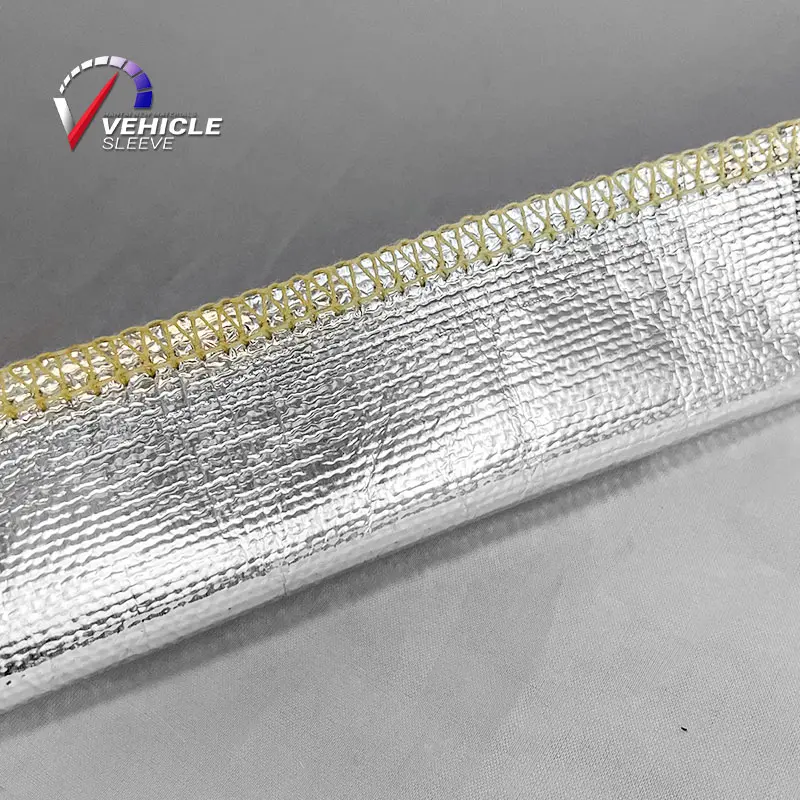

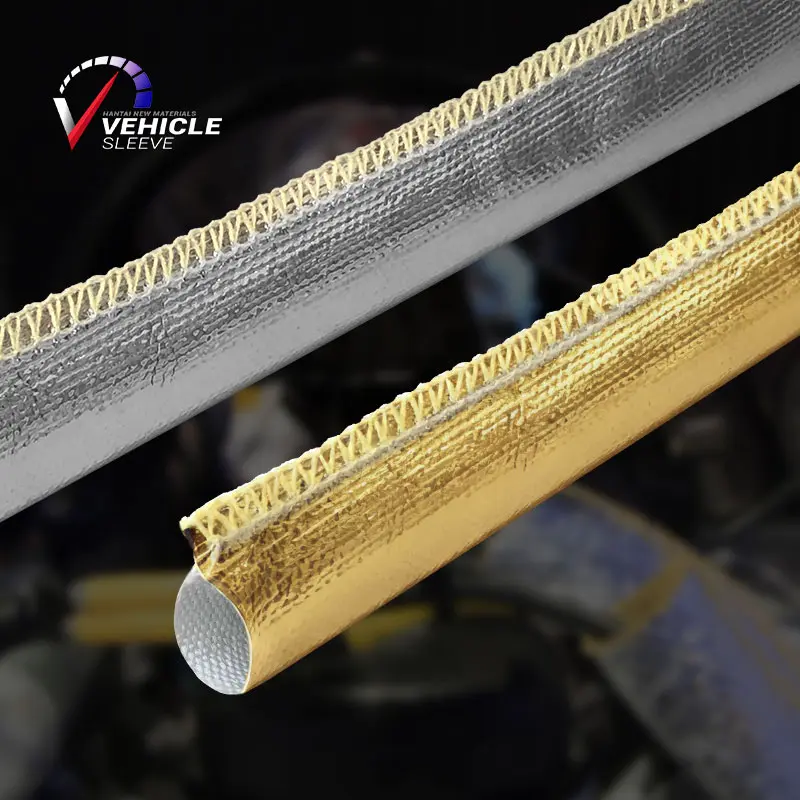

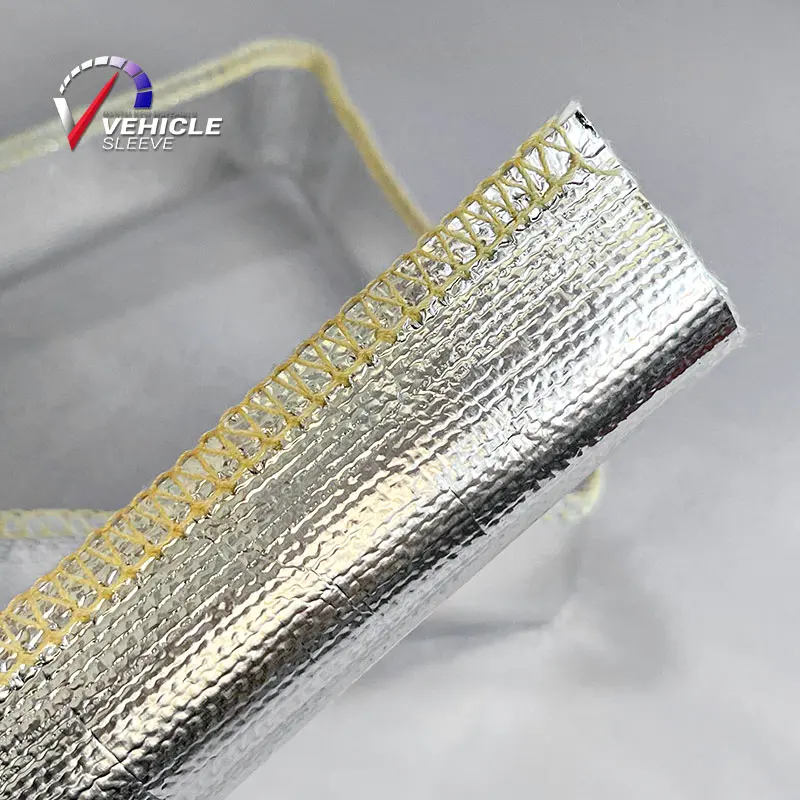

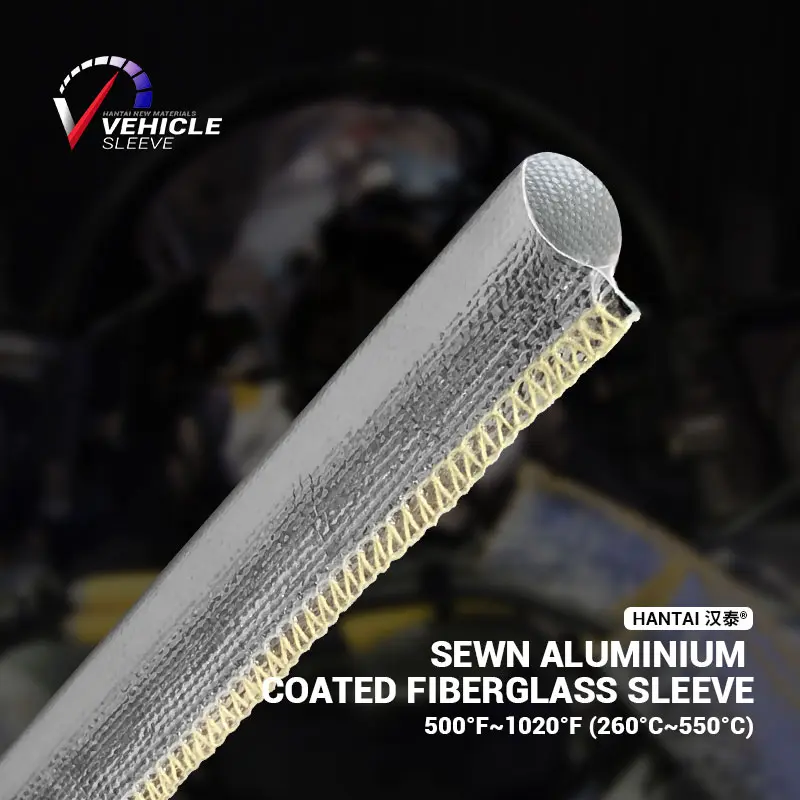

Sewn Aluminium Coated Fiberglass Sleeve
• Materials: Fiberglass, Aluminium Foil
• Working Temperature: 500°F~1020°F (260°C~550°C)
• Size Range: 5/8″(15mm) – 4″(100mm)
HANTAI Sewn Aluminium Coated Fiberglass Sleeve is used to protect wires, cables, hoses, and other components from high temperatures, abrasion, and other environmental hazards. Its working temperature range is from 500°F to 1020°F (260°C to 550°C), and it can reflect up to 90% of radiant heat.
DESCRIPTION
HANTAI Sewn Aluminum Foil Fiberglass Sleeving is a highly efficient thermal insulation material. Its special design and structure enable it to reflect more than 90% of radiant heat. The sleeving typically consists of two layers of material: an inner layer of strong, high-temperature-resistant fiberglass, and an outer layer covered with a thin aluminum film. The aluminum film not only enhances the durability of the sleeving, but also significantly boosts its radiant heat reflection capabilities.
In many industrial and commercial applications, this type of sleeving is used to wrap pipes, cables, or other equipment that requires thermal insulation. By effectively reflecting radiant heat, it can significantly reduce the temperature around the equipment, improve workplace safety, and minimize energy waste.
Moreover, it boasts excellent flexibility and corrosion resistance, enabling it to adapt to diverse and complex environments and installation conditions. Whether indoors or outdoors, in dry or humid conditions, it maintains stable performance and provides long-lasting protection for equipment.
Sewn aluminum foil fiberglass sleeving is used to protect industrial wires, cables, hydraulic hoses, pipes, and tubing, as well as automotive wires and cables, from radiant heat sources.
CHARACTERISTICS
| PRODUCT | Sewn Aluminium Coated Fiberglass Sleeve / Sewn Aluminum Foil Coated Fiberglass Heat Shield |
| HANTAI PART NO# | HT11L-** (**refers to the inner diameter=ID) |
| MATERIALS | Fiberglass, Aluminium Foil |
| CONSTRUCTION | Braided |
| SIZE RANGE | 5/8″(15mm) – 4″(100mm) |
| WORKING TEMPERATURE | 500°F~1020°F (260°C~550°C) |
| COLOR | Silvery |
